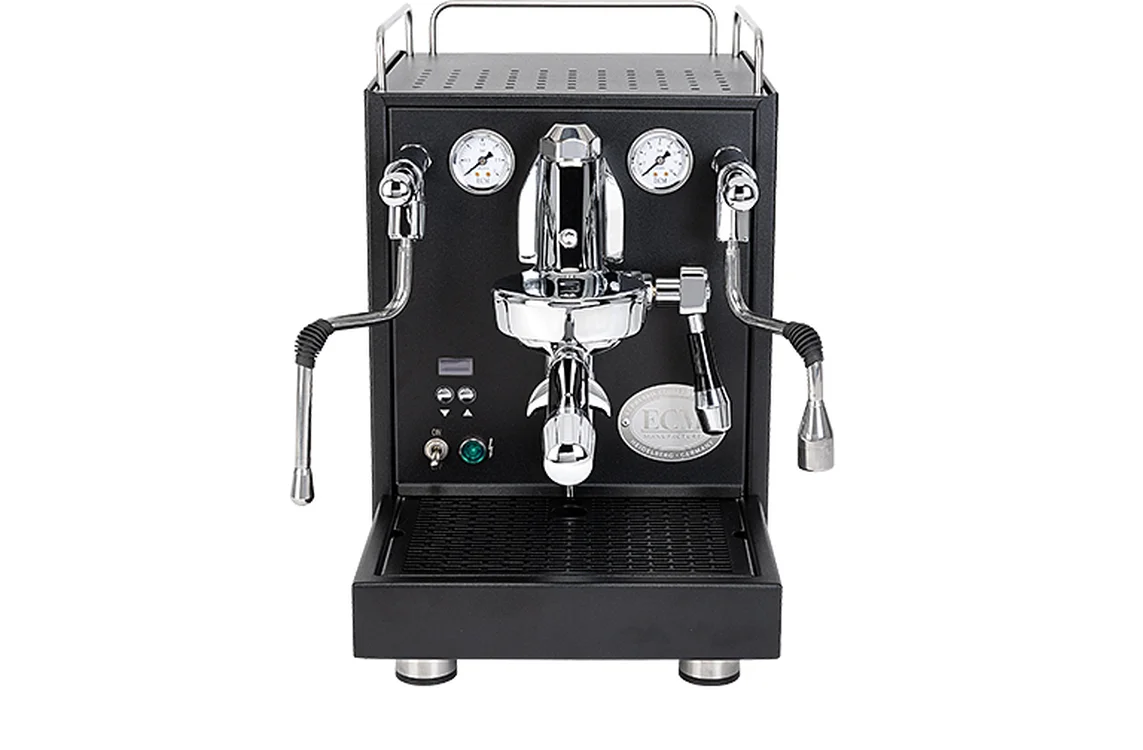

The Mechanika MAX II is ECM's newest heat-exchanger machine, built around a system the manufacturer calls BTC with a PID-adjustable brew temperature between 90 and 95 °C. Pre-infusion is adjustable with active and passive timing through the display menu, and the machine supports two automatic on/off schedules per day plus an ECO mode.
Water supply is switchable between a roughly 3-litre tank and a fixed connection, with a low-water indicator and automatic shutdown when the tank runs dry. The panel carries both a boiler pressure gauge and a pump pressure gauge, as shown in the manual's component diagram.
At 275x445x405 mm and 23.5 kg, it is among the more compact heat-exchanger machines in the range. The manual states 230 V/2000 W for the EU, UK, CN, AU version and 110 V/1600 W for the US, JP version, with no single figure valid everywhere. The manufacturer does not specify the boiler material, the pump type, or the portafilter diameter for this model.
| Parameter | Value | Source |
|---|---|---|
| Machine dimensions | 27.5 × 44.5 × 40.5 cm (10.8 × 17.5 × 15.9 in) | manufacturer website |
| Weight | 23.5 kg (51.8 lb) | manufacturer website |
| Power supply | 50-60 Hz / 2000 W | manufacturer website |
| Boiler architecture | Heat exchanger (HX) | Declared by the brand |
| Portafilter diameter | 58 mm | Declared by the brand |
| PID control | Yes | Declared by the brand |
| Pump type | Rotary | Declared by the brand |
| Pre-infusion | Programmable | Declared by the brand |
| Group head type | E61 | Declared by the brand |
| Water tank capacity | 3 l | Declared by the brand |
| Plumbable | Yes | Declared by the brand |
| Pressure gauge | Yes | Declared by the brand |
The group diameter has no tolerance: only what is declared for 58 mm will fit.
